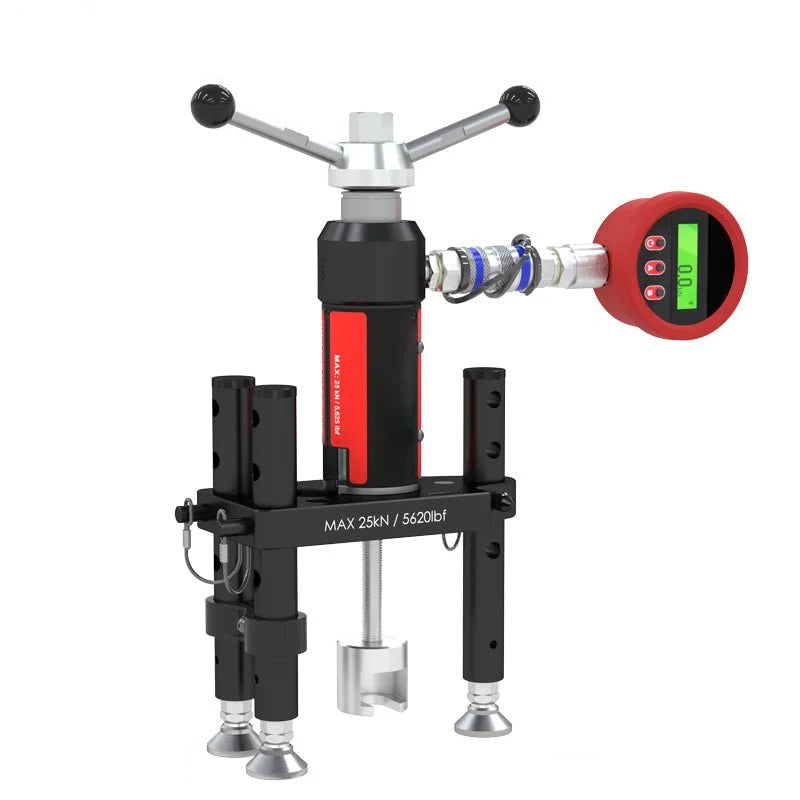

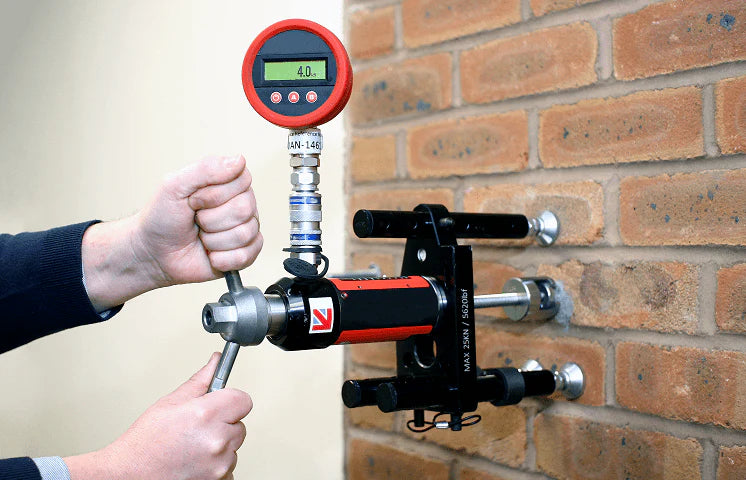

Universal Anchor Tester - QualiAnchor M2000 PRO

Universal Anchor Tester - QualiAnchor M2000 PRO Kit includes a versatile set of adaptors, enabling testing for a wide variety of fixings and critical safety applications with a maximum tensile load of 25kN (5,620 lbf).

Universal Anchor Tester - QualiAnchor M2000 PRO

Universal Anchor Tester - QualiAnchor M2000 PRO Kit includes a versatile set of adaptors, enabling testing for a wide variety of fixings and critical safety applications with a maximum tensile load of 25kN (5,620 lbf). Used by industry leaders globally, the QualiAnchor M2000 PRO Tester Kit is a trusted tool for conducting testing in accordance with standards such as BS 8539, BS 7883:2019, BS EN 795:2012, and AEFAC-TN05.

Designed for convenience, the QualiAnchor M2000 PROTester Kit is user-friendly and easy to transport. Each kit comes with a comprehensive full-color user manual and the support of our dedicated technical team, ensuring reliable operation and assistance.

Universal Anchor Tester - QualiAnchor M2000 PRO Features

The Universal Anchor Tester - QualiAnchor M2000 PRO includes a dual-scale, rechargeable digital gauge with a range of 0–25kN. This gauge is compatible with the latest QualiAnchor App, offering seamless real-time monitoring. The gauge is also detachable for easy calibration, reducing the need for carrier returns.

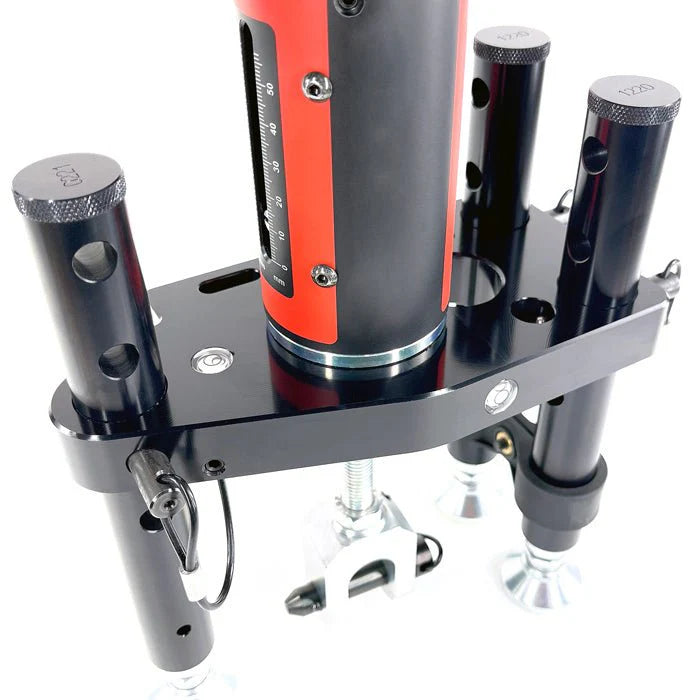

Innovative Load Spreading Bridge

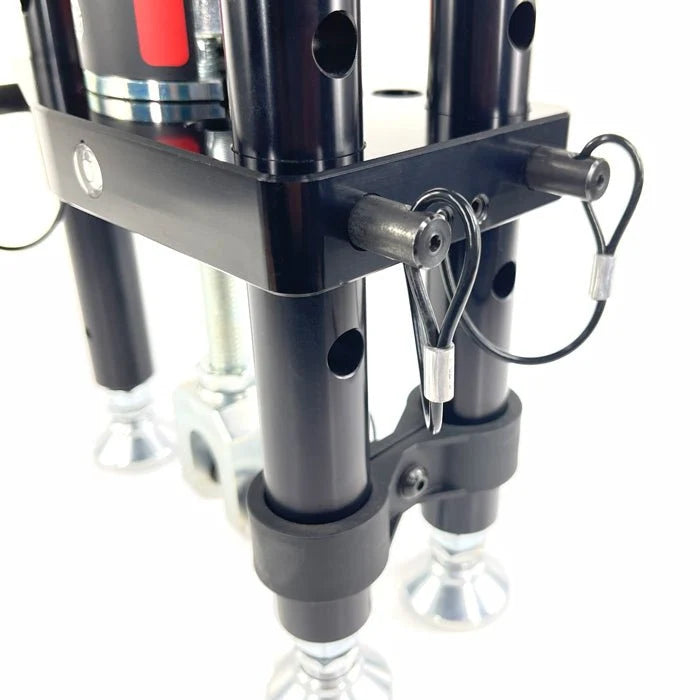

The 2020 load-spreading bridge features height-adjustable legs with a four-position pin arrangement and swivel feet, providing 15mm of fine adjustment for diverse application requirements.

Compact Design and Practical Handling
A 22mm (7/8″) integrated nut turning handle is designed for use in confined spaces, allowing up to 50mm of stroke. The anchor tester arrives preassembled, with quick-attach accessories for streamlined operation.

Calibration and Protection
Each tester includes a gauge calibration certificate, valid for 12 months. It is supplied in a durable, protective carry case with full operating instructions.

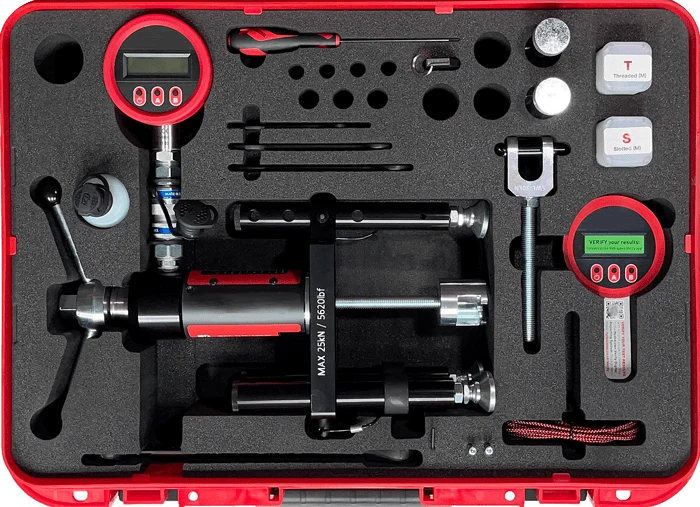

Comprehensive Kit Adaptors Include:

• M12 ringbolt adaptor clevis
• Bolt tester adaptor with M12 locking adaptor
• M16 & M20 threaded stud adaptors
• Six slotted button adaptors: 4.5, 5.5, 6.5, 8.5, 10.5, and 12.5mm
• Six threaded button adaptors: M4, M5, M6, M8, M10, and M12

This complete kit is designed for precision and durability, making it an ideal tool for demanding anchor testing applications.
