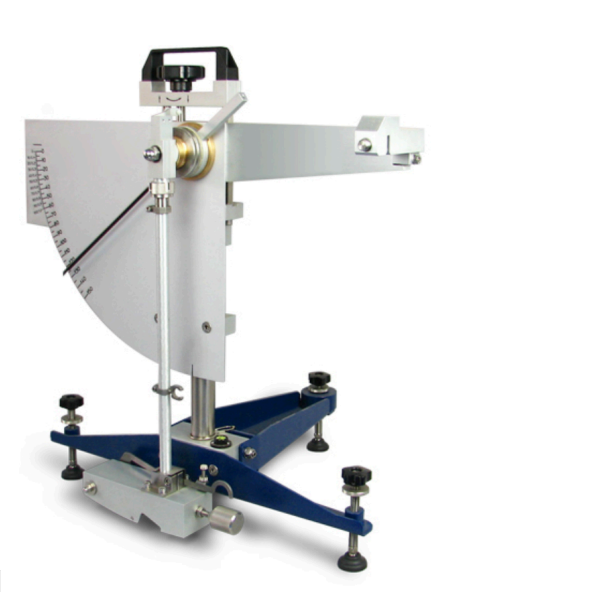

Skid Resistance and Friction Tester

The Skid Resistance and Friction Tester Quali-FSRT303, also known as the Floor Slip Resistance Tester, is a versatile instrument designed to assess the slip resistance of a floor and evaluate the frictional resistance between a rubber slider attached to a pendulum arm and various test surfaces. This slip resistance tester provides precise and repeatable measurements, offering engineers and safety experts an effective tool for laboratory-based floor slip resistance testing and on-site assessments. With its robust design and portability, the floor slip resistance testing equipment is important for determining the floor slip resistance of materials in both wet and dry conditions. This advanced device excels in slip testing by simulating real-world scenarios where accidents, such as slip and fall incidents, may occur. Its reliable pendulum skid testing mechanism is calibrated to recognized standards like ASTM E-303 and BS 7976, ensuring compliance across industries. The Quali-FSRT303 not only measures the resistance of a floor but also supports the development of anti-slip flooring materials and aids in legal and accident investigations involving pedestrian walkways or road surfaces.

Standards:

ASTM E303
BS 6077 Pt1
BS 7044
BS 7188
BS 8204
BS 7976
BS 812 Pt. 144
AS/NZS 4586
BS EN 1097-8
BS 13036-4:2003

Features:

Designed for laboratory and in situ road surface testing

Dispatched calibrated to ASTM E-303

Low-friction arm and lightweight pointer

It comes with an integral 'F' scale for use with a small slider set for a 76mm slide length.(PSV test)

Repeatable and reproducible

Supplied with a robust carrying case

Applications:

Road surface testing

Testing of new road surface materials under development

Testing of aggregates in the PSV (polished stone value) test

Testing of floors and pedestrian walkways

Flooring materials product development

Accident investigations, both traffic and pedestrian

Litigation investigations

Technical specifications:

Rocker weight: 1500 ± 30 g

Distance between rocking center and center of gravity: 410 ± 5 mm

Positive static pressure on pavement: 22.2 ± 0.5 kN

Weight of rubber slider: 16 g

Package: Aluminum alloy air transport case

Dimension: 760 x 740 x 500 mm

Weight: 47 kg

Standard accessories:

Portable skid resistance and friction tester, adjustable in height

Sturdy case with dense foam inserts giving excellent protection

F' Scale Built in, for use with small slider set for 76mm slide length. (PSV test)

Perspex setting gauge 126 mm

Slider 55 Road surfaces. The customer can choose either type.

Brush, for removing unwanted dirt or grit from the area to be tested

C Spanner, for attaching and releasing the arm to the rotating head

17mm Spanner for fitting the rear foot

Water spray bottle, for wetting the surface to be tested

Foot pads, for placing under levelling feet when on soft ground

Operating instructions, A guide to road, floor, and PSV testing

Tool set

Calibration Certificate Despatched

Options (need to be ordered separately):

Metal base plate without fixing device

Slider 55 PSV Test

FOUR S, Slider 96 Internal Floors

Fixing device to base for blocks and natural stones (EN1341, 1342)

Fixing the device to the base for laboratory polished test
