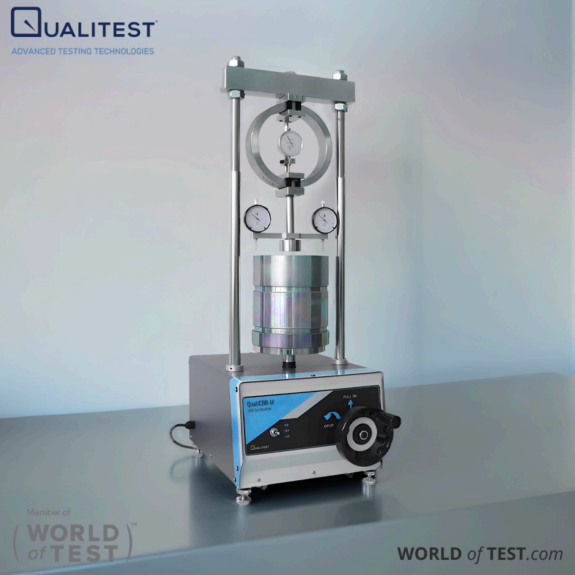

CBR Test Equipment QualiCBR-M is a manual CBR apparatus engineered for laboratory testing to assess the strength of soil subgrades and base course materials with particle sizes under 40mm. The unit features a two-column frame with an adjustable upper beam, a proving ring, a penetration bar, and a loading plate.
Please note that dial indicators and CBR molds are
sold separately.
Standards:
BS 1377, 1924
EN 13286-47
ASTM D1883
AASHTO T193
Technical specifications:
Capacity: 30 KN / 50 KN (selectable)
Load Speed: 1.0 mm/min
Penetration Rod: End diameter 50 mm
Platen Stroke: 50 mm
Test Mould: Dia. 152 mm x 177.8 mm
Dimensions: 34 x 50 x 88cm
Voltage: 380 V, 50 Hz, 150W
Weight: 82 Kg
Accessories:
Dial gauge tripod
Aluminum swell plate
Brass swell plate
Split surcharge weight 2 kg, 2.27 kg selectable
*Note: The above accessories are ordered separately.
